Barner fall-away arrow rests (1980's)
works by triggering slide inside assembly
causing wire to drop. High speed photography
shows that the arm actually dropped after the arrow left the bow.

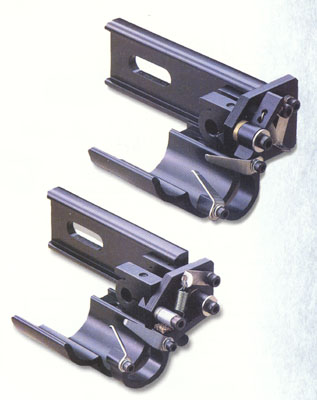

Bodoodle Arrow rest overdraw (1995)

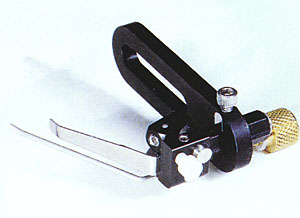

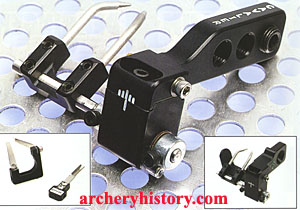

Cavalier micro-tune arrow rest (1999)
Cavalier Free Flyte Micro Rest (1999)
Early center shot bow designs
#1-J.O.Lowell 1940
#2-C.J. Cameron 1931
#3-W.H.Wright & G.L.Thorne 1897

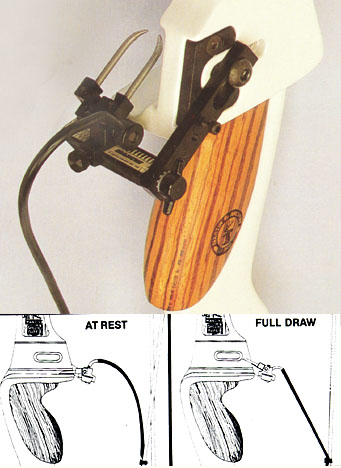

Martin Fallaway Prong Rest (1989)
Original Martin Fallaway Rest (1984)

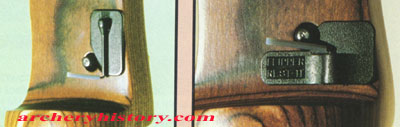

Flipper Arrow Rests (1970's)

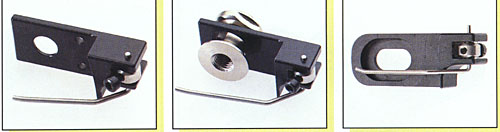

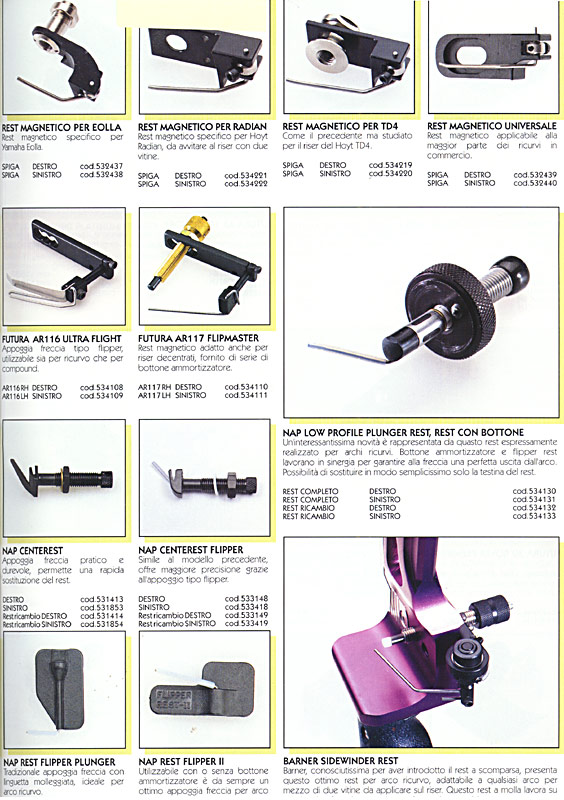

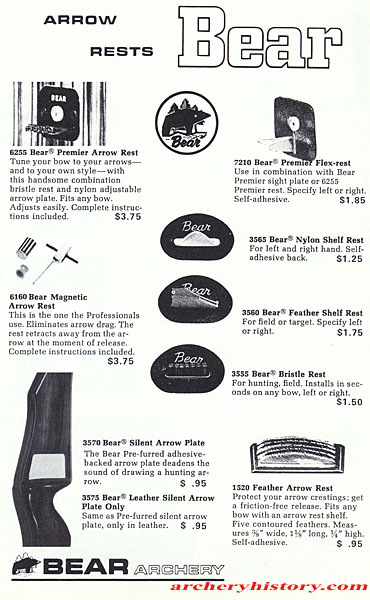

Magnetic Arrow Rests (1996)
mfg by Hoyt and Yamaha

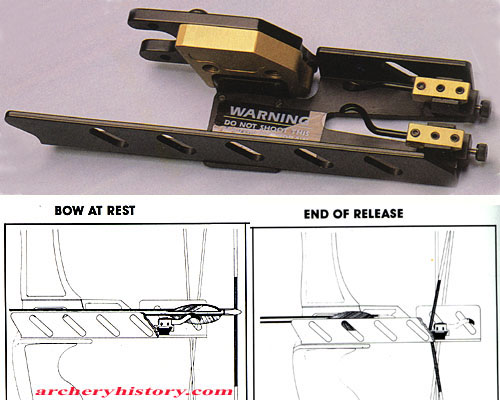

Martin 3-D Arrow Rest. This design allowed the cables
and string to past
the rest without coming in contact with any part of the overdraw.(1989)
Miltron Products "Match 1"
(1976)

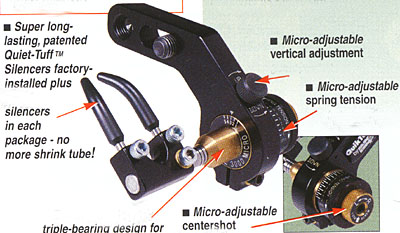

NAP Quick Tune 3000 micro arrowrest (2000)

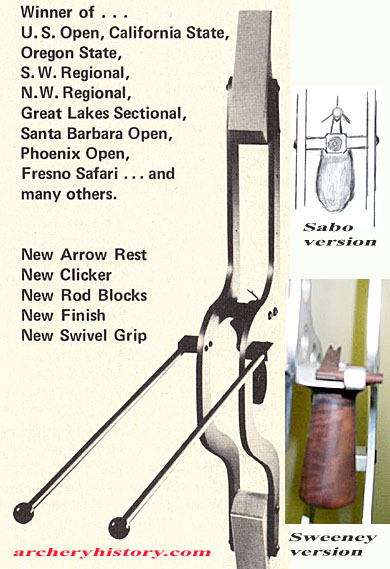

Sabo SSR recurve bow (1969-70) shows earliest versions
of
"V" launch arrow rest. The Sabo rest was made in several
versions. Some finger shooters drilled the side sight window plate and
installed Hoyt adjustable side rest.
(Photo is from a 1970 Sabo ad)

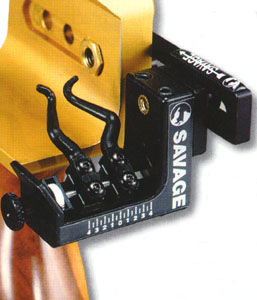

Savage Archery (2000)
made with Teflon or steel prongs
Martin Scepter
built-in arrow rest
overdraw
Springy rest originally manufactured by Pat Norris
Bonnie Bowman Archery (1970's)
Tuner Arrow Rest (1980)

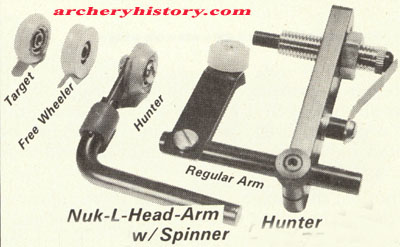

Nylon wheel with steel bearings. Micro-Tune and standard model
